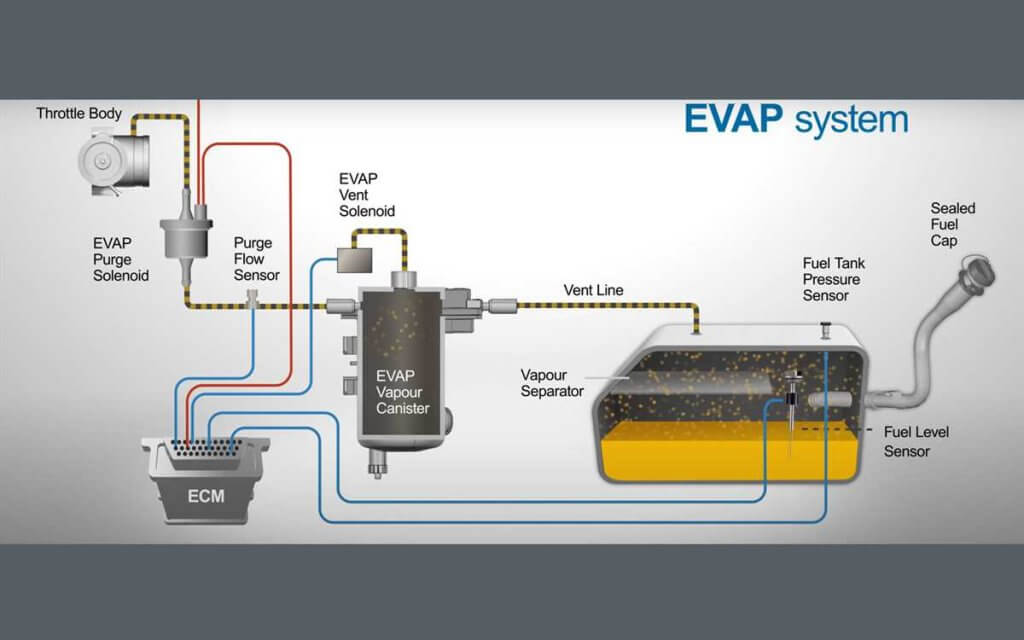

The P0441 code is a diagnostic trouble code for the powertrain. Any vehicle with OBD-II can trigger it. This indicates that the EVAP system is not working properly. The evaporative system (EVAP), prevents petrol vapours escaping from the fuel tank into the air. The EVAP system collects petrol vapours in a canister next to the tank. The EVAP system captures petrol vapours and stores them in a small canister located next to the fuel tank. The fuel vapours slowly escape the canister to be burned in the engine. The P0441 code is activated if the purge flow falls below or above the recommended level. Purge flow is controlled via the purge valve.
Table of Contents
Symptoms of Fault Code P0441
The engine check light will illuminate when this fault code is present. A scanner is required to read the fault code and perform all necessary checks. The engine speed can suddenly increase in some cases while the car is idling.
P0441 Fault Code: What Causes It?
The cause of the P0441 error can be hard to determine. The EVAP system has several components. If any of these are faulty or leaky, an error code will be generated. This code could be triggered by:
- Faulty fuel tank cap
- Faulty vacuum switch
- Short circuit or open in the wiring harness
- Damaged hoses within the EVAP system
- Carbon canister damaged
- Purge solenoid faulty
- Faulty purge valve
- Corrosion of electrical resistance or corrosion in the purge connector
- Blockage of the EVAP System
- Faulty powertrain control module (PCM / ECM / ECU)
A code may be generated by the EVAP system if it is unable to maintain a vacuum level due to leaks originating within the system. A code can also appear if a fuel pump is replaced but the seal was not properly installed. This error code may be caused by recent changes or repairs made to your fuel system.
P0441 Fault Code: How to Fix It?
It can be challenging to fix this fault code because you might need to do a lot of trial and error testing to determine the cause. Check for physical damage to the canister tank, EVAP line, and controls. You must conduct a thorough visual inspection, as even minor damages can cause leaks. Test the fuel pressure to make sure the sensor for the fuel tank is working correctly. Check that the fuel tank cap is fully seated, and has a good seal.
Check and fix any short or open circuits on the voltage supply circuit for the solenoid drain. Test the drain connector and make repairs if needed.
Replace the drain solenoid if you are unable to diagnose the problem. Replace the vacuum switch next. Consider replacing the PCM. This final fix is expensive, so you should only use it as a last option.
- Fuel tank cap replacement
- Repair of EVAP leaks
- Repair any components that are damaged or faulty within the EVAP System
- Replace the drain valve
- Replace the vacuum switch if it is faulty
- Repair or replacement of the wiring harness
How Serious is Fault Code P0441?
P0441 is not a serious fault code. The engine fault light is the only symptom. There may be a slight fuel smell that is unpleasant. The fault should still be fixed as soon as possible.
