This system is a vital component in your car. This system keeps your engine from stalling, even when you turn on power-consuming devices like the air conditioner. The Powertrain Control Module (PCM), when the idle control system revolutions per minutes (RPMs) are lower than anticipated, sets the P0506 error code.Most vehicles today feature electronic throttle control. Sensors and the PCM control the throttle, while the idle air system controls the engine idle speed. The idle air system also controls the heater fan, air conditioning and windscreen wipers.
The engine speed of a vehicle should be between 750 and 1000 RPM when it is idle. The PCM will record the P0506 diagnostic error code in its memory if the engine idle speed falls below 750 RPM.
Table of Contents
What are the causes of fault code P0506?

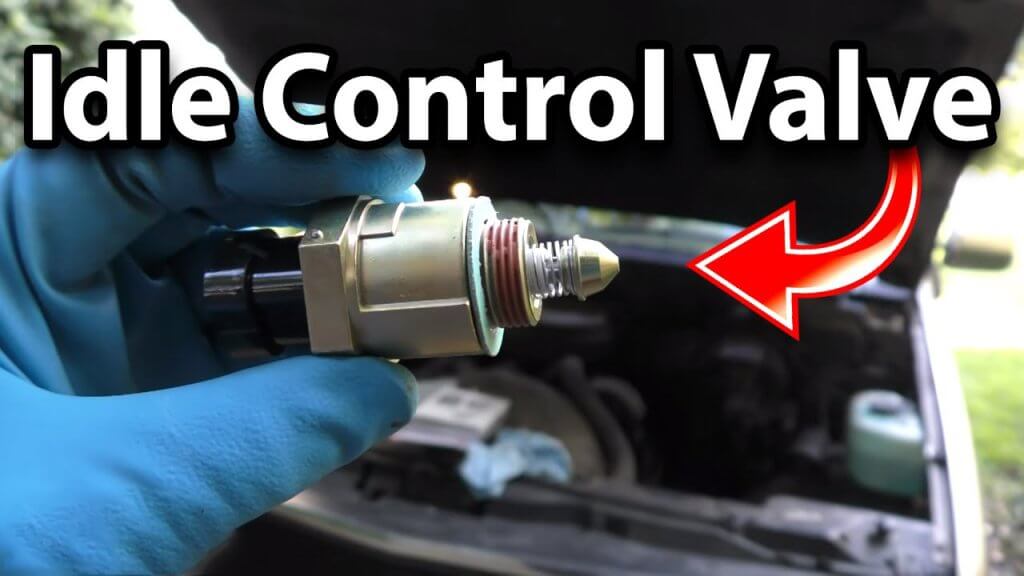

- A faulty IAC valve
- A problem with ETC
- Vacuum leaks
- A dirty or damaged throttle body
- Faulty hydraulic pressure switch
- Air ducts that are crushed or restricted
- Air filter clogged or dirty
- Blocked air intake or exhaust
- Internal engine component problem
- Circuit issues such as damaged cables and loose connections
- Faulty PCV valve
- Faulty PCM
What are the symptoms of fault code P0506?
It is possible that the engine fault light will illuminate for many reasons. It can be hard to identify the component that is causing a problem.
- Low idle speed
- Engine stalls at idle
- Idle speed fluctuating
- Engine runs unevenly when idle
How to Fix Fault Code P0506?
P0506 is often caused by vacuum leaks or dirty throttle body airways. It is therefore important to clean the throttle body plate if needed. It is also important to view live data to check the engine idle speed, idle air control system, and PCM functionality.Sometimes, in addition to the P0506 fault code, there are other diagnostic error codes stored by the PCM. To avoid misdiagnosis, these codes should be checked. Check for carbon buildup and vacuum leaks in the throttle body’s air passages.
To see if the codes return, first clear all codes and then perform a test run.
- Replace the idle air controlmotor
- Repairing vacuum leaks
- Replace the idle air control valve
- Cleaning an dirty throttle body
- Replace a throttle body that is faulty
- Cleaning any obstructions in the air intake and exhaust
- Replace a PCV valve that is faulty
- Replace the hydraulic steering pressure sensor
- Diagnose and repair other codes stored in the PCM
- Replace or reprogram the PCM
How serious is fault code P0506?
Diagnostic fault code P0506 can cause loss of power while driving. This could be dangerous. This code is therefore considered to be serious. Diagnose and repair must be done as quickly as possible.
