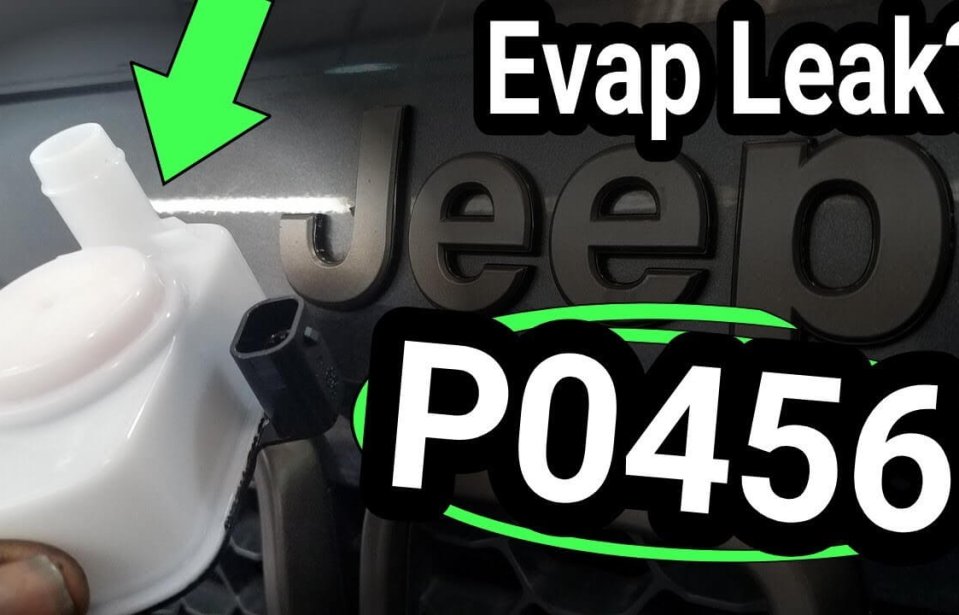

The complex emissions system in your vehicle is designed to prevent fuel leaks. This system is the cause of the P0456 fault. It indicates that there has been a small leak detected. The engine control module tests the system regularly to protect it. The PCM monitors EVAP pressure using the fuel tank pressure (FTP) sensor. The P0456 code is caused by a failure to maintain the proper fuel tank pressure. The failure to maintain pressure can indicate a fuel leak, fuel line or related hoses.
Table of Contents
What are the symptoms of fault code P0456?
It is unlikely that you will notice any differences in the normal operation of your vehicle. The engine check light will typically illuminate first when the P0456 code is present. You may begin to notice a faint smell of gasoline or an increase in fuel consumption.
- The Check Engine Light illuminates
- Fuel consumption increases
- Emission values of the vehicle rise
- Noticeable fuel smell
What are the Causes of Fault Code P0456?
The evaporative emissions system is made up of your fuel tank and fuel lines. It also includes a fuel hose, filter box, drain valve, and fuel hoses. Any of these components may have a small leak. The following items should be checked individually:
- Fuel tank leakage – small
- Fuel lines or hoses that are torn, punctured or corroded
- Carbon filter damaged
- Damaged Drain Solenoid
To determine the source, close the ventilation solenoid completely with a scanning device and use a leak detection tool.
How to Fix P0456 Fault Code?
You should repair or replace your evaporative emissions system after you have located the leak. While checking for leaks, do not use air pressure. You may damage the drainage valve and ventilation solenoid. It is better to remove the leak detector and inspect the area of the leak. Replace the damaged section or replace the entire hose if you see signs of wear.
A filter canister or drain valve may need to be replaced if there are visible damages or leaks of air. It is more expensive to replace these components, but they are necessary if your system cannot pressurize.
A loose or damaged cap on the fuel tank is one of the most common problems. This cap creates a pressured environment by sealing your fuel tank. The P0456 code is triggered if the cap fails to close properly. Check the fuel tank cap carefully and tighten. Replace the cap if there is a fault and check if it clears the fault code.
The P0456 error can be resolved by one of these solutions. Air leaks in the entire system could cause the system pressure to drop and disrupt the vacuum. You must therefore carefully inspect all components in order to locate the source of leakage.
Note: Evaporative emission fault code P0450 is relevant. Also P0451 P0452 P0453 P0454 P0455 P0457 P0458 and P0459.
