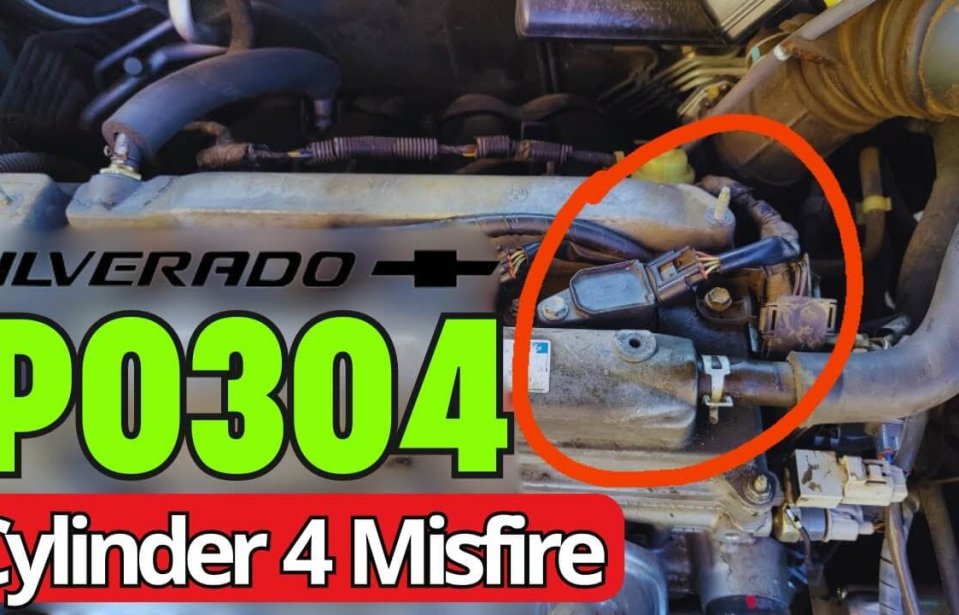

The vehicle computer (PCM/ECM/ECU), detects multiple misfires on cylinder 4. The P0304 code can appear with other codes such as rich/lean fuel or misfire codes. The ECU monitors ignition timing for all cylinders. It will set the fault code if it detects misfiring in a cylinder. The engine warning light will also alert the driver.
Table of Contents
What are the symptoms of fault code P0304?
P0304 can have different symptoms. The driver may not see any other symptoms in some cases and only see the Engine Control Light. Other symptoms include an engine that runs irregularly, is difficult to start, has misfires, stalls, or experiences slight gas leaks.
- Engine Control Light Illuminated
- Starting the engine is difficult
- Vehicle shaking and jerking during acceleration
- Instability
- Stuttering or stalling
- Fuel consumption increases
- Engine power loss
What are the causes of fault code P0304?
This fault can be caused by a variety of factors. It could be caused by a faulty ignition coil or spark plug, both of which are relatively easy to fix. It could be due to a catalytic convertor or vehicle computer that is faulty. These are more expensive and difficult to fix.
- Spark plugs or wires that are faulty
- A defective ignition coil or plug
- Fuel injector wires damaged
- Fuel injectors that are not working properly
- Faulty oxygen sensors
- The incorrect compression
- Low fuel pressure and level
- Intake air leaks
- Catalytic converter faulty
- Faulty exhaust valve
- Faulty PCM/ECM/ECU
- Engine mechanical issues. (e.g. leaking valves, damaged piston rings, worn camshaft lobes, damaged lifters, damaged cylinder heads gaskets, etc.)
How to Fix Error Code P0304?
Spark plugs that don’t fire correctly and misfire in the cylinder are the most common cause. Start the repair process by replacing and checking the spark plugs.
Verify that the cables and connectors leading to the misfiring-cylinder are in good shape and secure. The ignition components might need to be changed depending on the age and routine maintenance of the vehicle. Check the ignition coils if the spark plugs and cables appear in good shape. You can swap ignition coils to see if the misfire is resolved. The ignition coil is to blame if the misfire spreads to another cylinder. Catalytic converters can also be defective. This is evident by the smell of rotten eggs coming from the exhaust.
Fuel injectors may be the cause of the problem if none of these things work. Also inspect the components that are connected to the cylinders such as the camshaft, manifold and valves. It may be that there is a crack or mechanical fault in these components, which prevents the fuel from spraying properly. These components will need to either be repaired or replace if you discover a fault.
- Replace all spark plugs
- Replace spark plug wires and distributor cap
- Replace faulty ignition coils
- Repairing intake air leaks
- Resolving fuel-related issues
- Fixing mechanical engine problems
How Important is the P0304 Fault Code?
Unfired cylinders are a serious issue. Unattended, this can lead to further damage to the engine. You could cause damage to expensive engine parts or catalytic converters if you don’t repair the problem that is causing the misfire. A vehicle that does not work properly can compromise your driving safety. It must be fixed as soon as you can.
