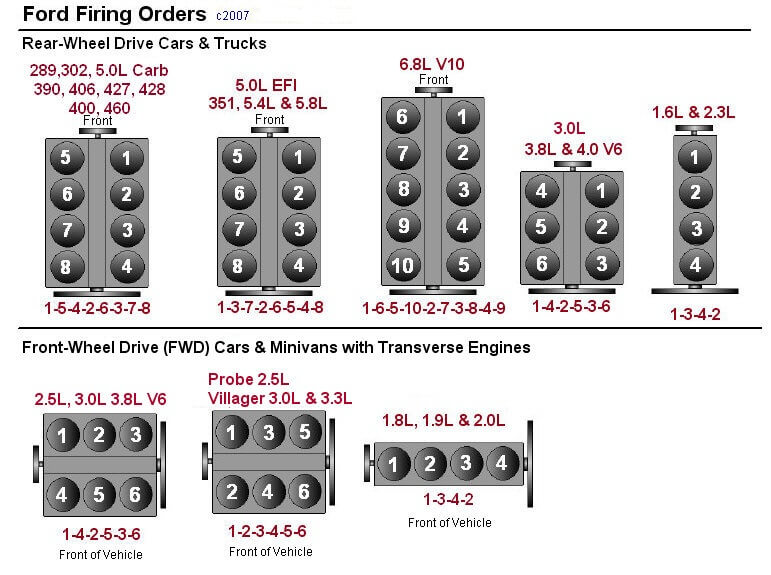

The P0300 code means that the computer of your vehicle has detected an ignition fault (misfire) in more than one engine cylinder. Other fault codes, from P0301 through P0308, will also likely occur. This code’s last number indicates the cylinders that are misfiring. The P0303 code, for example, indicates that cylinder number 3 is misfiring. The cylinder that you are looking at is not the third in the engine ignition timing but the cylinder with the number ‘3″ in the engine cylinder arrangement. The four-cylinder in-line engines have numbers 1-2-3-4 starting at the timing belt.
Table of Contents
The incorrect ignition of air-fuel in one of the pistons is the cause of a’misfire’. Proper combustion of air-fuel mixtures provides power to crankshaft, and therefore, the engine. A misfire that originates from one or several cylinders may be caused by a number of factors. These include a malfunctioning ignition system, fuel supply, or an internal engine problem. Most vehicles have four or six cylinders. The spark plugs on the top of each cylinder ignite the air/fuel mix with an electric spark. Small explosions are created in the combustion chamber when the air/fuel mixture ignites. The explosions are precisely timed for maximum power and efficiency. The energy released by these explosions powers the crankshaft. The crankshaft is rotated by the synchronised cylinders. This is the process that ensures smooth vehicle operation.
The crankshaft revolutions per minutes may increase or decrease if a misfire occurs. The vehicle’s computer will issue a fault code if the increase or decrease is greater than 2%.
The engine fault light will come on if the number of crankshaft rotations per minute increases or decreases by 2% to 10%. The engine fault light will blink if this ratio is greater than 10%. A flashing engine fault lamp indicates a serious misfire.
The P0300 code indicates a random and multiple misfires of the cylinders (or no ignition).
All fault codes between P0301 and P0312 are misfire issues. The last two digits in the fault code will tell you which cylinder has a misfire. As an example, P0301 represents the first cylinder and P0311 the eleventh (for a 12 cylinder engine), etc.
What are the symptoms of fault code P0300?
P0300 can cause a variety of symptoms:
- The engine fault light will not go out or blink continuously
- The engine is not starting or has difficulty starting
- When accelerating, the vehicle shakes and hesitates.
- Instability
- Misfiring or stalling
- Fuel consumption increases
- Engine power loss
- Fuel smell from exhaust
What are the causes of the P0300 fault code?
The fault code may be due to a number of factors. It could be caused by a faulty ignition coil or spark plug, both of which are relatively easy to fix. It could also be due to a catalytic convertor or vehicle computer that is faulty. These are much more expensive and difficult to fix. Be prepared to undergo a lengthy diagnosis and repair if you have the P0300 code.
- Spark plugs that are damaged or worn out
- Spark plugs and coil wires that are damaged or worn
- Inflammation coils that are damaged or worn
- Faulty distributor caps (some vehicles).
- Distributor rotor failure (some vehicles).
- EGR valve clogged
- Fuel injector wires damaged
- Fuel injectors that are faulty
- The ignition timing is incorrect
- Vacuum leaks
- Low fuel pressure and level
- Leaking cylinder head gasket
- Faulty oxygen sensors
- Faulty camshaft position sensor
- Faulty crankshaft position sensor
- Faulty mass Air Flow (MAF), sensor
- Faulty throttle sensor
- Catalytic converter faulty
- Faulty PCM/ECM/ECU
- Engine mechanical issues, such as a leaking valve, damaged piston, worn lobes of the camshaft, damaged lifter or cylinder head gasket.
How to Fix P0300 Fault Code?
If there are no symptoms to go along with the code, reset it and check if it reappears. The code can be reset if there are no symptoms. Check to see if the code reappears. Check that the cables and connectors leading to the faulty engine cylinder are in good shape and secure. Depending on the age of your vehicle, and for routine maintenance purposes, you may want to replace ignition components. Check the ignition coils if the spark plugs and wiring appear to be in good shape. You can swap ignition coils to see if the misfire is resolved. The ignition coil is most likely the cause of the misfire if it has spread to a second cylinder. Catalytic converters can also be defective. This is evident by the rotten-egg smell coming from the exhaust. The problem could also be caused by fuel injectors that are faulty.
- Replace all spark plugs
- Replace spark plug wires and distributor cap, as well as the distributor rotor
- Replace the ignition coil faulty
- Repairing intake air leaks
- Repairing or replacing valve covers that leak
- Replace faulty fuel injectors
- Resolving fuel-related issues
- Replace the camshaft sensors if they are faulty
- Replace the crankshaft sensors if they are faulty
- Replace the mass airflow sensor if it is faulty
- Replace the oxygen sensor when it is faulty
- Replace the throttle position sensor when it is faulty
- Replace the catalytic convertor if it is faulty
- Fixing mechanical engine problems
How Important is the P0300 Fault Code?
You must fix the problem immediately if you want to avoid serious driving issues. This code may cause the vehicle to be dangerous. The vehicle could suddenly stop or stall. The engine can be seriously damaged if you delay repairs or continue to drive the vehicle. It must therefore be repaired as quickly as possible.
