What is the fault code P2004 for? What is the Intake Manifold Runner Control Stuck/Open Bank 1 fault? How to rectify fault code P2004? What are the symptoms of and causes for fault code P2004?
What is P2004 Fault Code?
P2004 is the general fault code for air transmission systems. Repair steps can vary depending on vehicle make and model, even though P2004 is applicable to all vehicles older than 1996. This fault code is generated by the Powertrain Control Module/ECU when the Runner 1 Flow Control Actuator remains in the open position. The Runner 1 code indicates the issue occurred on the 1st cylinder bank.

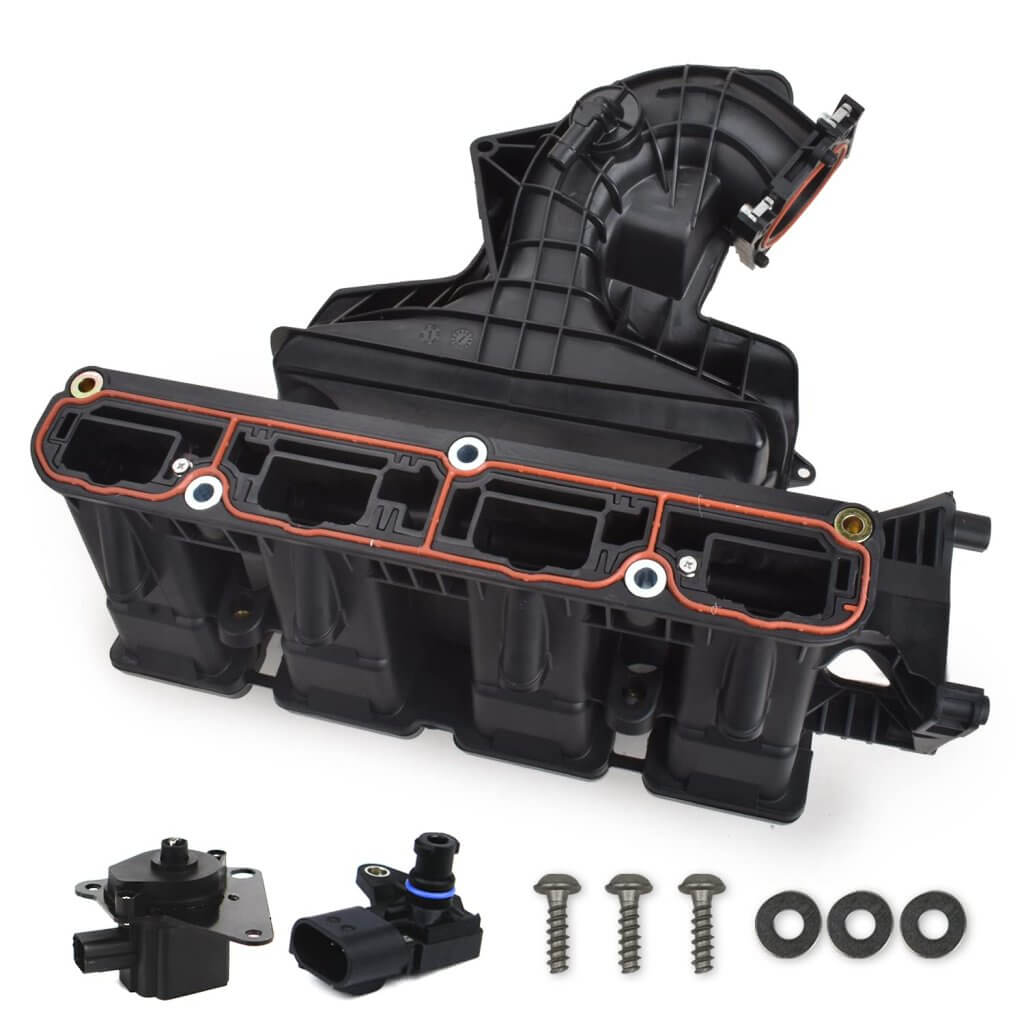

The IMRC system controls the airflow within the intake manifold, before air enters the motor. The airflow into the engine is regulated to reduce harmful emissions, improve the air/fuel mix, and increase fuel economy. A solenoid is used in the IMRC system to open and close the flaps within the intake manifold. This solenoid is controlled by the primary computer of your vehicle, also known as the Powertrain Control Module (PCM).
Table of Contents
The solenoid controls the flow of air by opening and closing metal flaps which fit snugly over each cylinder intake port. The flaps are attached to a thin rod running the length of the cylinder head from the intake port. With a single motion, all blades can open simultaneously. If one blade gets stuck, the entire set may stop working.
PCM monitors IMRC solenoid continuously to ensure that it is working correctly. The PCM gathers data from different sensors, and uses these to determine how the IMRC works. The blades open at high speeds/RPM to allow air in, while they close at low speeds/RPM to restrict airflow. If the PCM detects the blades not being in the right position, it will display a P2004 error code, and the engine control lamp will be illuminated to alert the driver.
The PCM uses data from the IMRC sensor to ensure that the IMRC system functions correctly. This includes the IMRC sensor position, the manifold absolute (MAP) pressure sensor, the intake air temperature sensor and the throttle position sensor.
What are the symptoms of P2004 fault code?
- Reduced engine performance at low engine speeds
- High fuel consumption
- Fluctuations of engine speed
- The engine warning light flashes or stays on intermittently
What are the causes of the P2004 fault code?
- IMRC solenoid cable short-circuited or broken.
- IMRC solenoid circuits that are open or short-circuited
- IMRC solenoid connector corroded
- IMRC throttle valve screws that are loose or broken
- IMRC throttle valves Broken
- IMRC throttle valve plates detached from IMRC actuator
- Clogged vacuum control solenoid vacuum filter
- Vacuum control solenoid residue
- Disconnected or broken vacuum lines
- Carbon buildup on IMRC throttle Plates
- PCM stored fault codes for the EGR valve
- PCM stores MAF sensor fault code
- BARO sensor fault code stored by PCM
- Intake manifold sensor wing position is faulty
- Faulty MAP Sensor
P2004 Fault Code Diagnosis and Repair
- The fault codes in the PCM can be read with an OBD2 scanner. If there are any fault codes for the EGR, MAF sensors, they should be repaired and diagnosed first.
- Visually inspect all cables for signs of short circuits, wear, and breakage. Cables that are worn, broken or short-circuited should be replaced.
- Visually inspect the solenoid to check for damage and corrosion.
- Replace worn or damaged connectors.
- Check vacuum lines and hoses. Repair or replace any damaged or loose hoses.
- Check for fractures and breaks in the connections of IMRC throttle valve plates.
- Check the EGR valve for excessive carbon buildup. The IMRC solenoid can malfunction if the carbon buildup enters it.
- To determine if a problem has been solved, all fault codes should first be cleared.
- Open and close the solenoid using the scanner. The solenoid will need to replaced if it does not work.
How serious is the P2004 fault code?
The engine can be seriously damaged if the IMRC throttle valve loosens and falls into it. The investigation and repair of fault code P2004 should be done as soon as possible.
How to Fix Error Code P2004?
- IMRC solenoid replacement repair or replace short-circuited or broken IMRC solenoid cable
- Repair or replace a solenoid IMRC circuit that has been short-circuited, or is open.
- Repair or replace a corroded IMRC connector
- If necessary, repair or replace the IMRC throttle valve assembly.
- Repairing or replacing damaged or loose vacuum lines
- Replace the IMRC throttle valve plate (replacement of the intake manifold is required).
- Diagnose and repair EGR valves, MAF sensors fault code if present
Frequently Asked Questions about P2004
What are Intake Runner Flaps?
The addition of flaps to intake runners provides additional support for an engine.
Airflow management allows you to reduce air consumption at low speeds.
Improve fuel economy run smoother at low RPMs, the doors are slightly closed; at higher RPMs they are fully opened so that the engine can breathe more easily.
Can carbon buildup cause P2004?
Yes, very often. Over time, the oily air and exhaust gasses produce black carbon deposits which stick to flaps and glue them closed.
This problem is common with direct injection engines.
How much does it cost to fix P2004?
Cleaning Intake System: Low-moderate
Vacuum Line Repair: Low
Replacement of solenoid: Medium
Replacement Intake Manifold: High
Cleaning or minor repairs can often solve a problem.
Can I fix P2004 myself?
You can fix P2004 yourself if you are confident.
Regularly clean the intake system
Installing an intake manifold is a complex process; do not rush.
