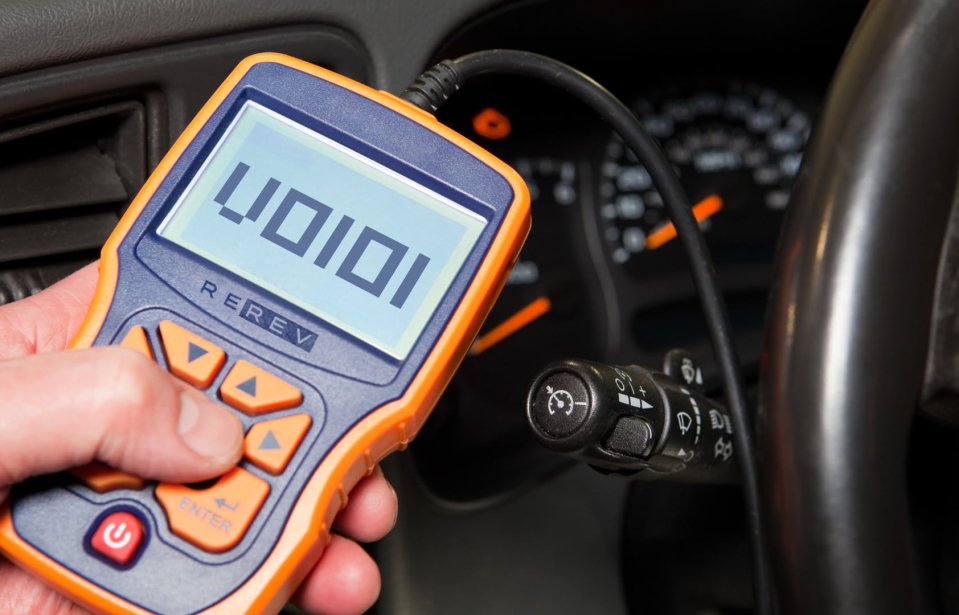

Sensors and computers are used in modern vehicles to ensure the smooth operation of different systems. It is vital that the vehicle’s computer modules or computers communicate with each other to operate at its best. All vehicle functions may be affected if the exchange of data between these modules and the other modules is disrupted. The U0101 fault codes seen on some vehicle models and makes indicate that communication with transmission control modules (TCMs) has been interrupted. The CAN data bus circuit is used to establish communication with other control module. The repair steps can vary depending on manufacturer, type of communication system, number of cables and cable colour.
Table of Contents
What are the Symptoms of Fault U0101?
- Problems with gear shifting are indicated by the engine fault light
- PRNDL and instrument panel display problems
- The vehicle becomes stuck in one gear (usually the 2nd or 3rd) when the engine protection mode (Limp Mode), engages.
What are the causes of fault code U0101?
- Damaged cables or short circuits on CAN bus circuits can be caused by a dead battery
- Damaged cables or short circuits.

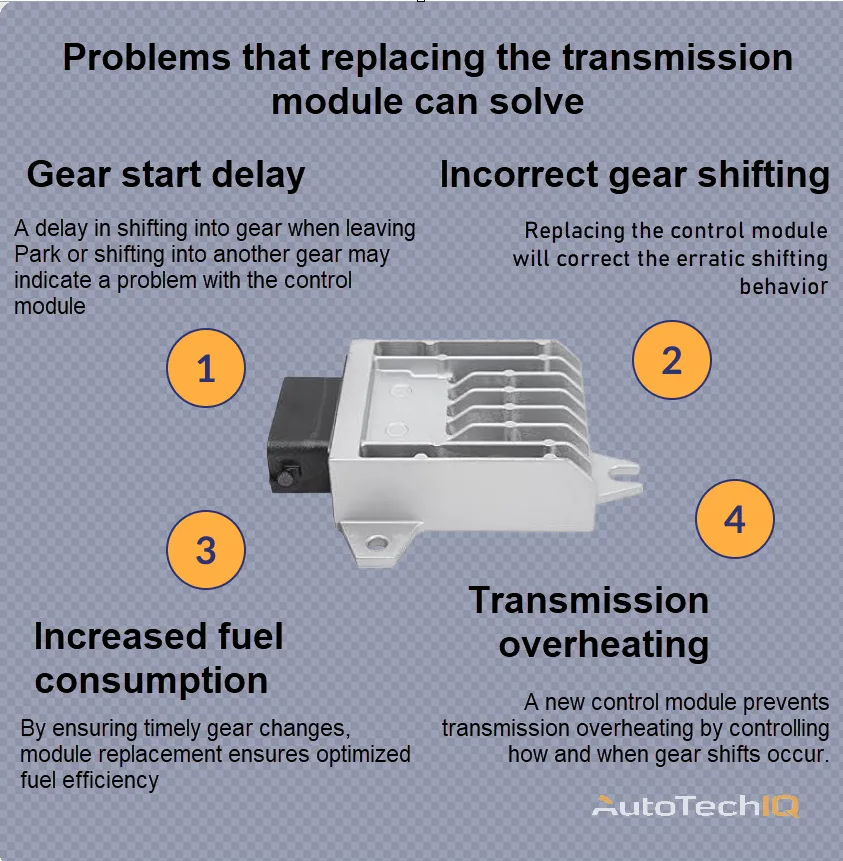

- Issues related to the Transmission Control Module (TCM)
- Transmission Control Module Fault (TCM)
How to Fix Error Code U0101?
Start by checking the technical service bulletins that relate to the problem. Manufacturers may provide the easiest solution for the fault. The most common faults are caused by the power and ground circuits. All cables and connectors should be checked for corrosion and damage. Check the fuses and relays which operate the TCM. Check that the connectors do not have any loose connections. Clean the connectors with a toothbrush if there is any dirt or grime. Clear the code after you have done all of this and see if it returns.
Locate the CAN bus connections in your car, and most importantly, the TCM module behind the instrument panel. Remove the negative battery cable first before removing connector from TCM module. Visually inspect the cables and connectors. Check for burn marks, melted plastic, melted wires, scratches, and abrasions. Remove the connectors from the device and inspect the metal parts (terminals) within the connectors. Check if the terminals are burnt, or if a green tone indicates corrosion. Use an electrical contact cleaner with a plastic bristled brush to clean the terminals if necessary. Let them dry, then apply dielectric silicone oil to the area where the terminals come into contact. Before reconnecting connectors to TCM modules, perform several voltage tests.
The TCM must be replaced if the problem persists despite all testing.
U0101 Fault Code: How Significant Is It?
U0101 is an extremely important fault code that needs immediate attention. U0101 faults can cause the gearbox (second or third) to be stuck in one gear. The engine control unit will put the vehicle in limp mode to avoid more serious damage.
